Why beverage labels are shrinking: Sidel's partial-label platform and PET recycling

Quick answer: Sidel has launched a roll-fed labelling platform, EvoDECO Next, that applies partial labels instead of full wraparound ones, cutting label material by up to 75% on a 90-degree format. Smaller labels mean less BOPP film per bottle and, done right, less material for a recycler to separate from the PET flake. They don’t fix PET recycling on their own: label material, adhesive and colour still decide whether a bottle sorts and reprocesses cleanly, which is why mechanical recyclers like Niagara Bottling are also trialling new technology to handle the PET that labels and sleeves currently complicate.

A smaller label, not a smaller decoration

Roll-fed labelling has always meant wrapping a printed film around the full circumference of a bottle, the format most people picture on a bottle of water or juice. Roll-fed labelling is traditionally associated with wraparound decoration, but it can now be applied to smaller partial labels using EvoDECO Next. The company frames it as downsizing rather than redesigning: the label still identifies the brand, it just covers less of the bottle.

The numbers behind that claim are specific. A 90° partial-label configuration can reduce label surface by up to 75% compared with a conventional wraparound label, while a 180° configuration is set to reduce label surface by 50%. Sidel’s own worked example, based on a line running at 61,000 bottles an hour, puts the area reduction in concrete terms: a 61,000 bottles-per-hour production line producing approximately 459 million bottles annually would see label surface area reduced from 20,160 mm² to 5,040 mm² per bottle by moving from a full wraparound label to a 90° partial label configuration.

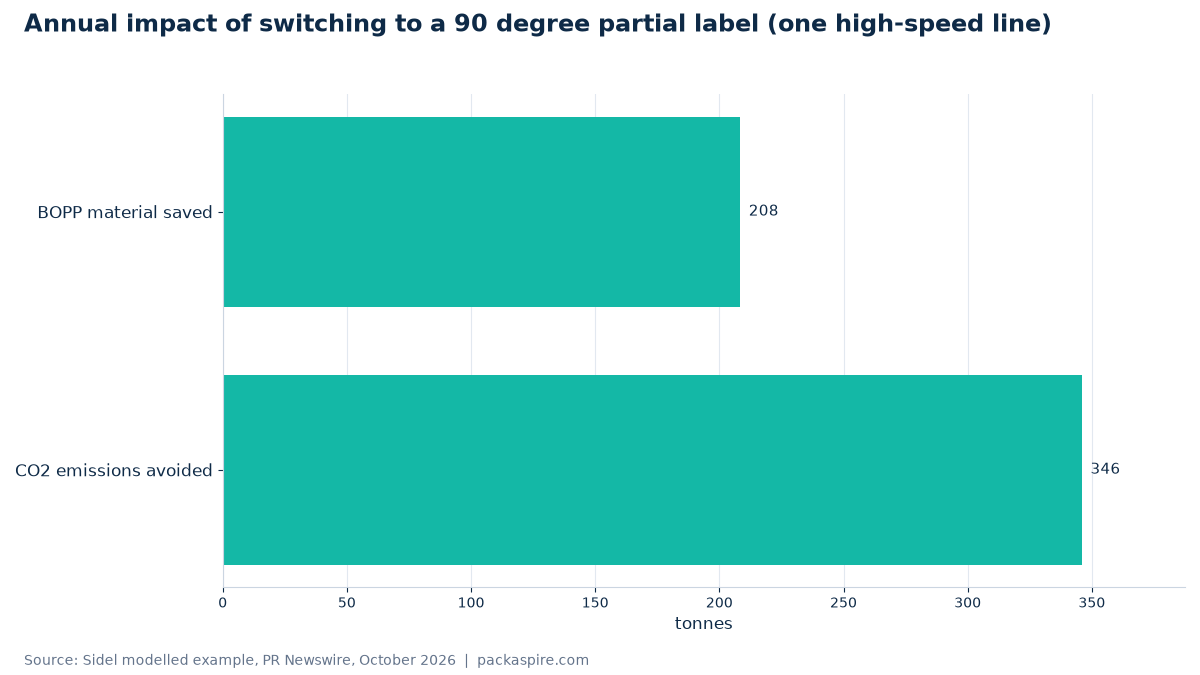

Scaled up across a year of production, Sidel says the material and emissions saving is real rather than marginal. By transitioning from a full wraparound label to a 90° partial label, one customer is thought to have reduced its annual BOPP consumption by 208.4 tonnes, lowered its subsequent CO2 emissions by 346 tonnes, and generated around €723,000 in annual raw material savings. Treat that as a modelled scenario from the supplier rather than a universal result: actual savings depend on bottle size, label format and current baseline.

Mechanically, the platform is built to make shorter labels viable at speed rather than bolted onto an existing machine. EvoDECO Next was developed as an integrated platform for shorter labels, rather than as an adaptation of an existing roll-fed machine. It incorporates several integrated technologies, including Cutter 2.0, Smart Buffer, Smart Camera and high-speed changeover components, with the rotary cutting system positioned directly on the transfer drum processing shorter labels at high speed, Smart Buffer enabling reel changes without reducing production speed, and Smart Camera eliminating the need for conventional reference marks and quiet zones.

Why a recycler cares about label size at all

PET bottle recycling runs on a simple physical trick: density. The density of PET is 1.38 g/cm³ and so it sinks in water, so closures, labels and attachments should be made from materials with a density less than 1.0 g/cm³ that will float in water and therefore be readily separated from the PET. That’s why BOPP, the film most wraparound beverage labels are made from, is the Association of Plastic Recyclers’ preferred label substrate in the first place: BOPP is stretched in two directions during manufacture, giving clarity, tensile strength and a density near 0.90 g/cm3, low enough to float, which is why BOPP suits PET bottles, since APR guidance favours film labels that separate cleanly in the sink float step.

Size matters alongside density for a different reason: sorting, not just separation. Full-body shrink sleeves in particular have been flagged as a recurring problem for automated sorting lines. Patent filings describing the issue note that guidelines from brand owners and publications of the National Association for PET Container Resources point to the issue created by full body sleeve labels in the recycling system, because the sleeves tend to obscure the automated detection systems during the sorting process, so sleeved bottles tend to end up being separated from clear PET containers and discarded. A smaller label simply leaves more clear PET visible to a near-infrared sorter, even before it gets anywhere near a float-sink tank.

Label composition still does most of the work, though. Paper, PVC and PLA labels are the ones recyclers flag hardest: Polystyrene has a density greater than 1.0, so it sinks and remains with the PET in float/sink separation systems, and paper labels undergo a hot caustic wash that renders paper into a pulp which is very difficult to filter from the liquid, adding significant load to the filtering and water treatment systems. A partial BOPP label that’s already a recycling-friendly material just becomes less of it.

Full wrap, partial label or cut-and-stack: what actually changes

Beverage producers choosing a label format are weighing shelf impact, line speed, bottle shape and recyclability at the same time. None of these formats is wrong in isolation; the trade-offs just land in different places.

Format	Typical coverage	Material vs full wraparound	Recycling consideration
Full wraparound roll-fed (BOPP/paper)	360°	Baseline	BOPP floats and separates well; paper causes pulping issues in caustic wash
180° partial roll-fed	Half the bottle	About 50% less label area	Same material rules apply, less area to separate and less sorter obscuration
90° partial roll-fed (EvoDECO Next)	Quarter of the bottle	Up to 75% less label area	Smallest footprint; most of the bottle visible to NIR sorters
Cut-and-stack pressure-sensitive	Front/back panels	Lower than wraparound, format-dependent	Floatable BOPP versions exist with APR recognition
Full-body shrink sleeve (PETG/PVC)	360°, including shoulders/base	Highest coverage, highest material use	PETG and PVC sink with PET flake unless washable ink or deseaming adhesive is used

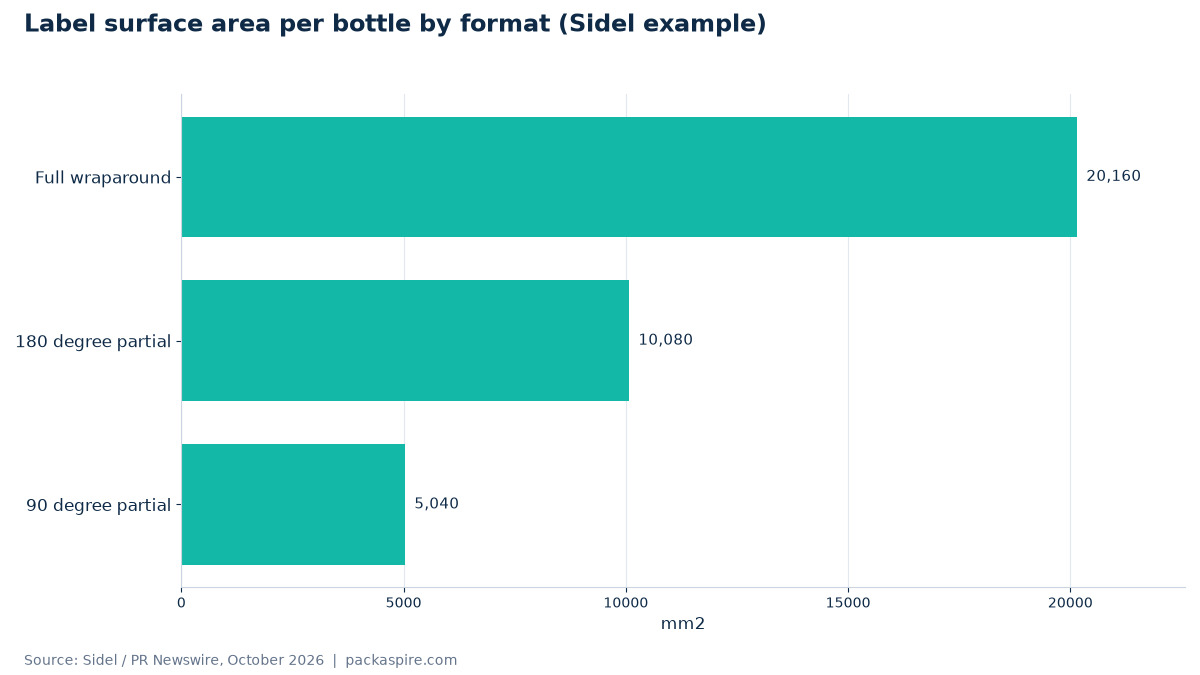

Label surface area per bottle by format (Sidel example)

What’s been done to make even full sleeves work

Brands that want the shelf impact of a full sleeve haven’t been left without options. Suppliers have spent several years getting specific label constructions through APR’s critical guidance process. CCL Label’s floating polyolefin shrink label for PET bottles, called Ecofloat, floats away from PET in float-sink tanks while inks remain on the label to avoid significant staining to the clear PET flakes. Chemical suppliers have also gone after the adhesive rather than the film: Sun Chemical and Eastman Chemical collaborated on a PETG shrink-sleeve label with an adhesive that detaches during the bottle wash, using Sun’s SunLam de-seaming adhesive on the Eastman Embrace LV copolyester label film. Washable inks for shrink sleeves have followed the same path, with APR awarding Siegwerk a letter for solvent-based washable inks for shrink labels for PET bottles, where during recycling the inks wash off the crystallizable co-polyester shrink film so that the clean label film can be recycled alongside the PET bottle flake. None of this is a substitute for simply using less label. It’s a parallel route for the categories, spirits and premium water among them, where full coverage is part of the brand.

The recycling side is catching up too

Lighter, smaller, more separable labels help a mechanical recycling line do its job. They don’t solve the harder problem: a meaningful share of collected PET still can’t be mechanically recycled back to food-grade quality, whether because of colour, multi-layer construction or contamination. That’s the gap a new US trial is aimed at. Rhea’s Factory, a biotechnology company developing enzymatic PET recycling, and Niagara Bottling, a family-owned US water and beverage manufacturer, have been selected for the US Department of Energy’s Industrial Technology Validation program.

The trial sits inside Niagara’s own recycling infrastructure. The project will validate RheaCycle, Rhea’s Factory’s enzymatic depolymerization platform, under industrial operating conditions at Niagara’s PET recycling facility in Vernon, California, with performance independently measured and verified by experts from DOE’s Lawrence Berkeley National Laboratory. It builds on an existing mechanical recycling operation rather than replacing it: Niagara’s role in the project builds on a recent investment, after the company acquired the Vernon recycling and packaging facility and the rPlanet Earth brand in May 2026 to reprocess PET into high-quality rPET flakes and pellets, with RheaCycle installed as a parallel line extending the range of PET the facility can return to food grade, without modifying Niagara’s existing operations.

Energy use is a stated design target for the enzymatic route, not an afterthought. Energy efficiency is a core design metric for RheaCycle, with enzymatic depolymerization running at low temperature and atmospheric pressure, and the validation measuring energy and water use per kilogram of recovered monomer. Read alongside the label news, the two stories describe the same supply chain from opposite ends: Sidel is reducing how much non-PET material ends up on a bottle in the first place, while Niagara and Rhea’s Factory are building capacity to recover value from the PET that mechanical recycling currently struggles with.

What this means for you

For brand and design teams: a partial label is a genuine lightweighting lever with a published material and CO2 saving from Sidel’s own modelling, but it changes how much bare bottle is visible, so bottle clarity, colour and any embossing become part of the shelf story in a way they weren’t before.

For packaging engineers and procurement: before committing to a format, check the label film’s density and adhesive against APR or EPBP guidance rather than assuming BOPP is automatically fine; printed, metallised or laminated variants can push density or opacity outside preferred ranges and trigger critical-guidance testing.

For quality and R&D: if a full-body sleeve is non-negotiable for brand reasons, look at APR-recognised washable-ink and deseaming-adhesive constructions rather than defaulting to a standard PETG sleeve, since the difference shows up as flake contamination and discolouration at the reclaimer, not on your line.

For anyone sizing up a lightweighting business case, the lightweighting calculator is a quick way to turn a label area reduction into material saved per thousand packs, and the material properties table has density figures worth checking against APR’s float/sink thresholds before locking a label spec.

On the regulatory side, the EU’s Packaging and Packaging Waste Regulation sets design-for-recycling criteria that will eventually cover label facestocks and adhesives directly; check the current text at ppwreu.org before finalising a label spec for EU markets.
